More Raptrac pics

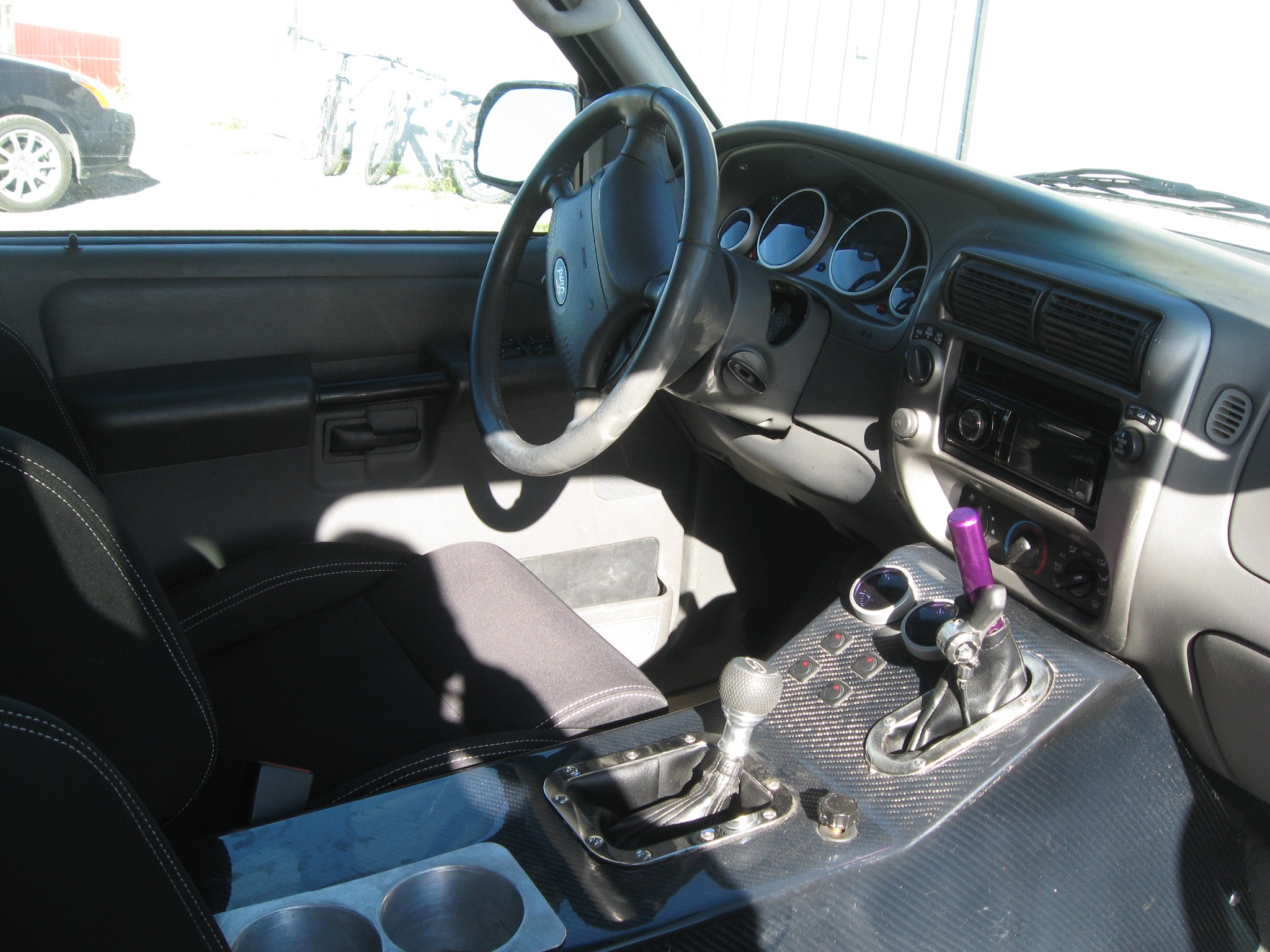

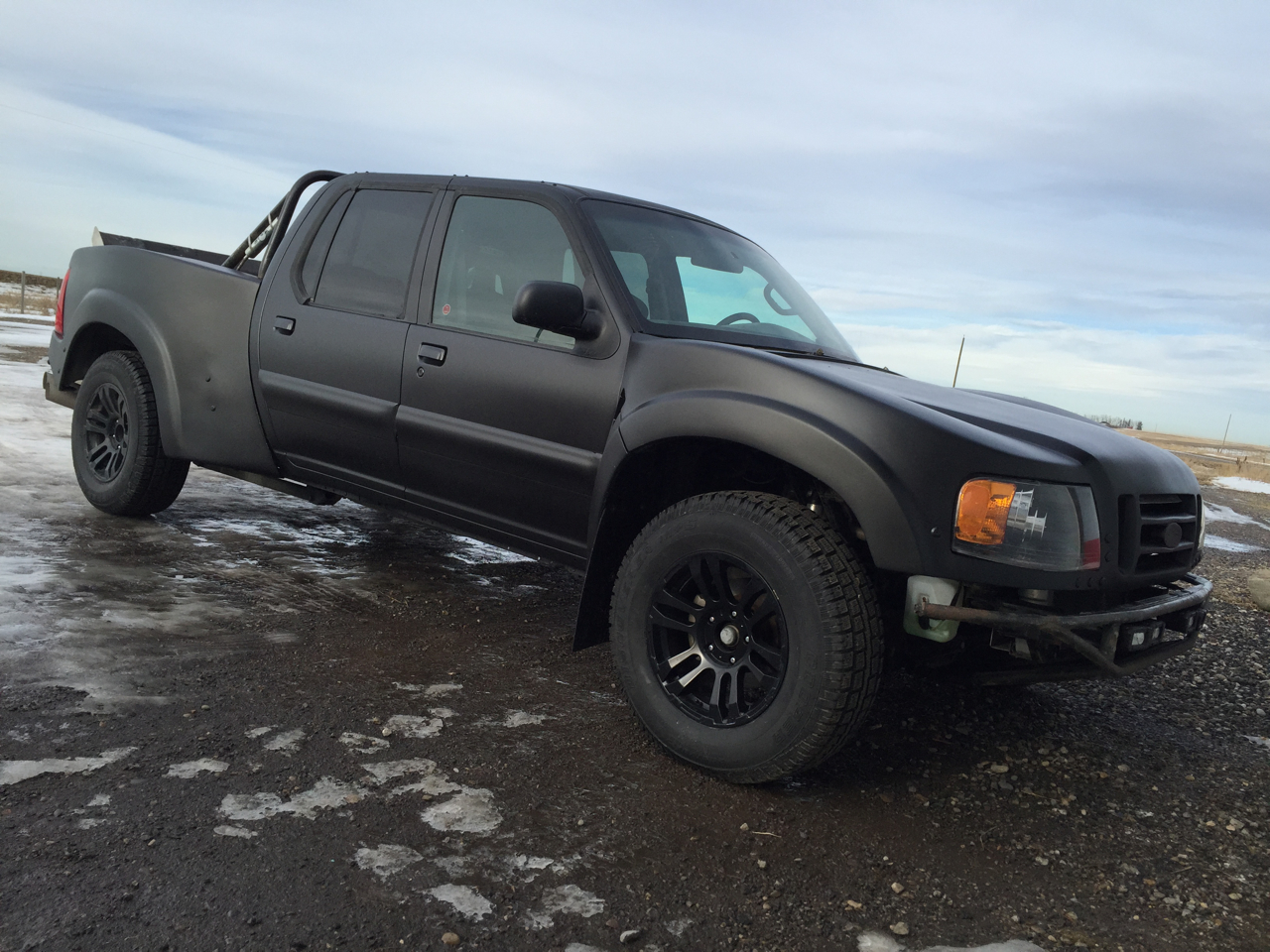

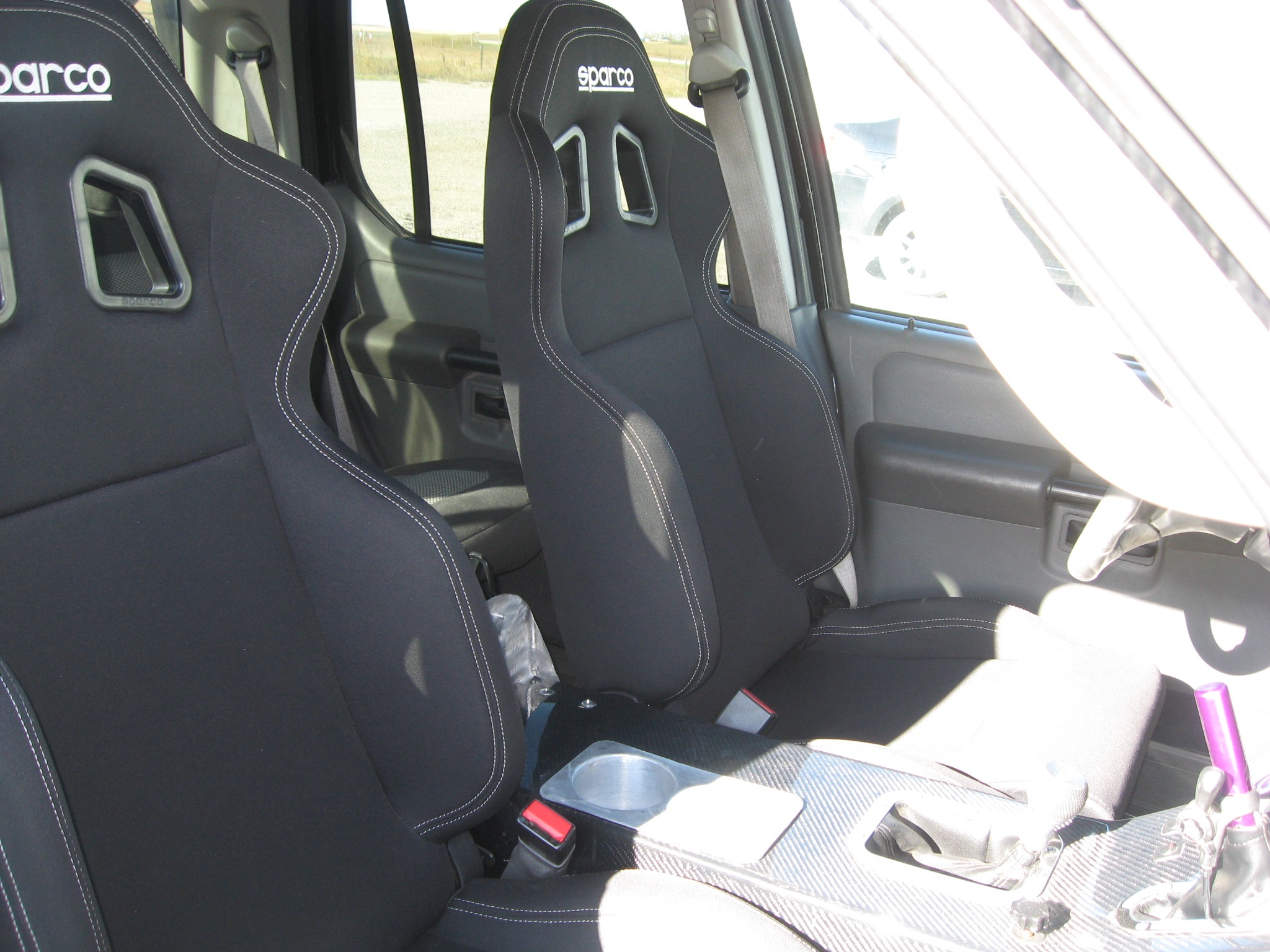

Truck is mainly finished now except for the paint, we will be working on that in the next month or so.  Carbon console finishes off the business end of the interior with light switches, gauges etc.  In case you are wondering the purple handle is the hydraulic rally / e-brake.  Sparco R100  seats are comfy with lots of support for spirited drivingrapshots2. rapshots3

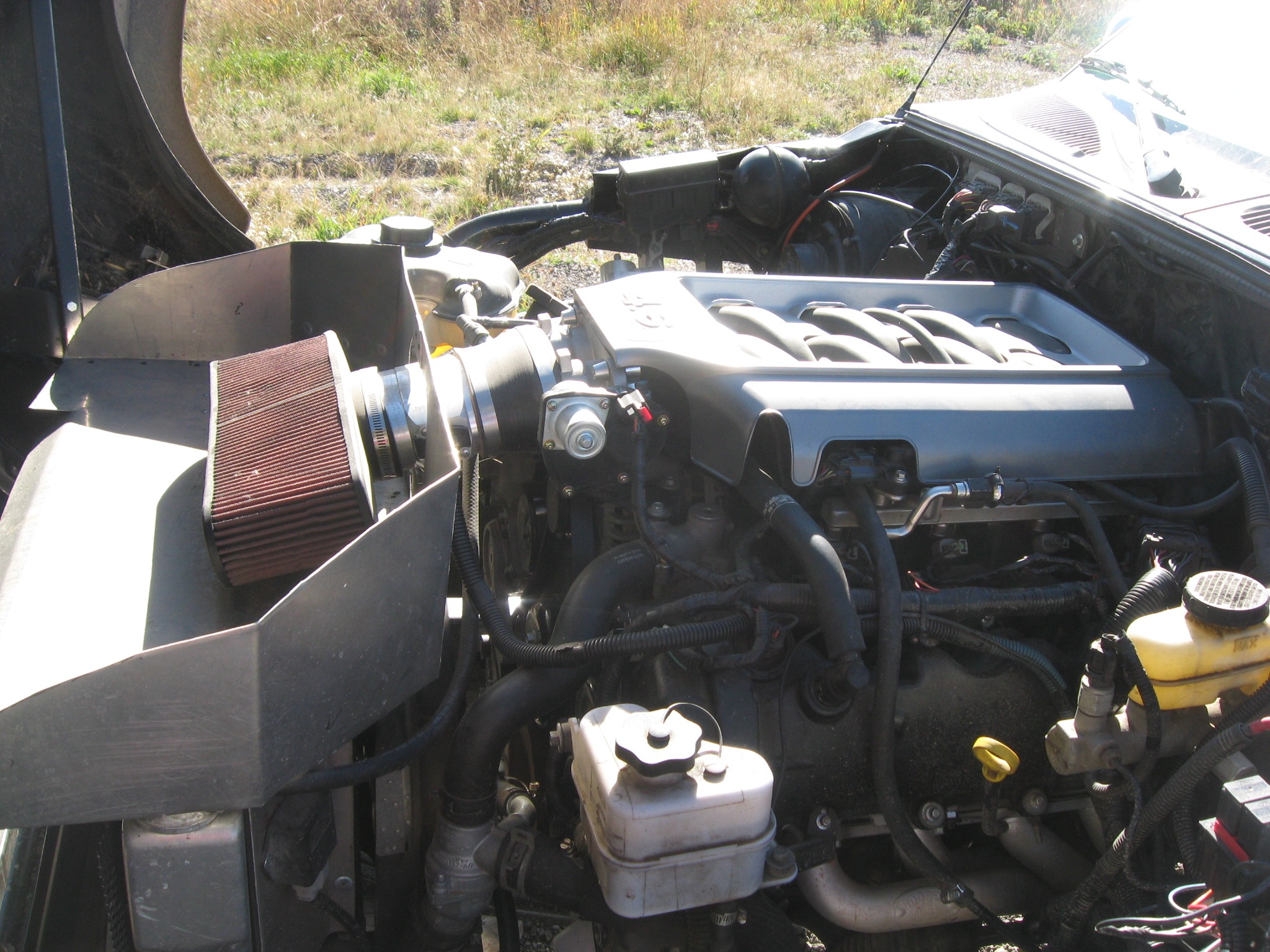

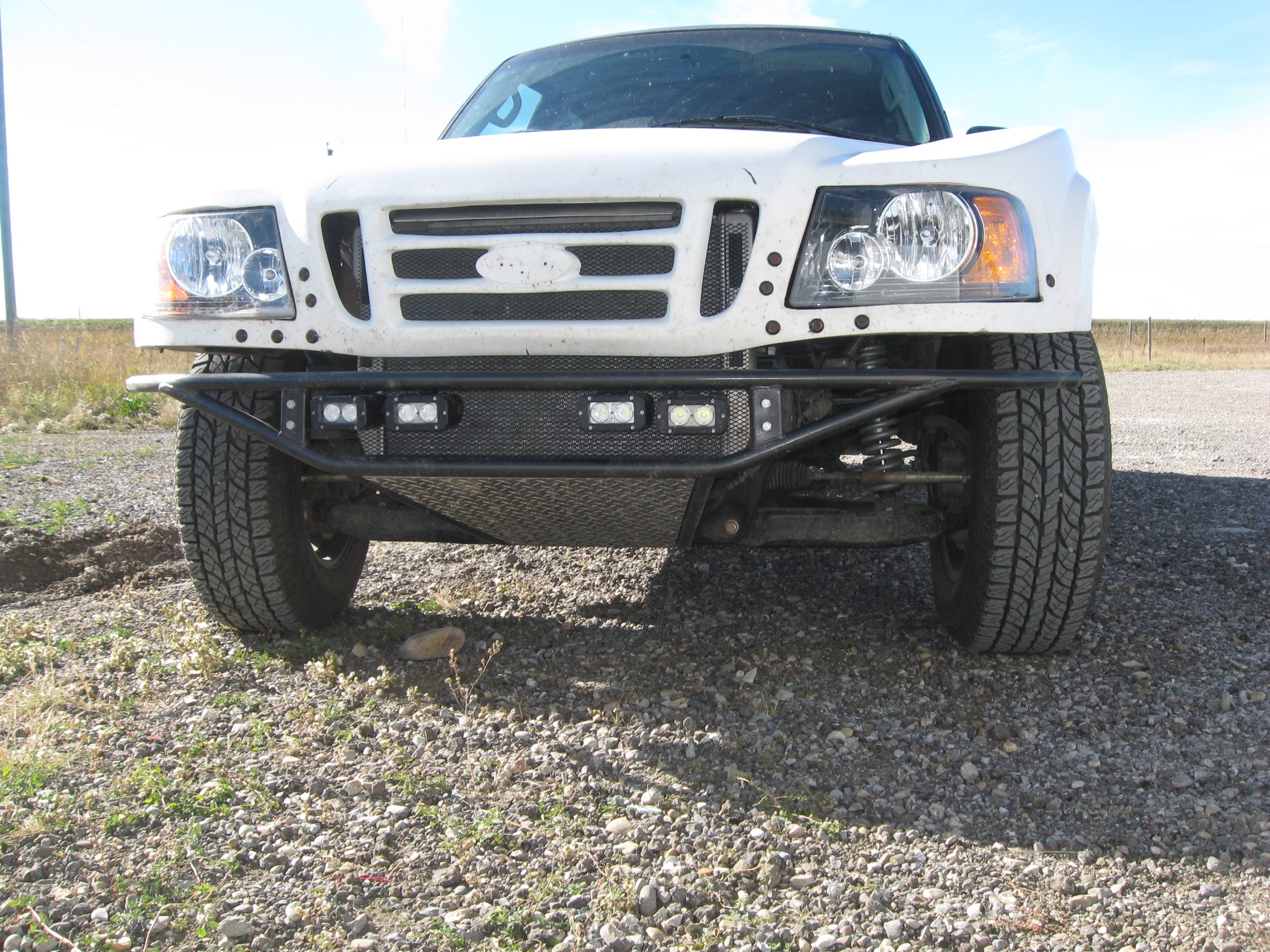

Engine is running excellent, you can see our aluminum ram air box with 05 Mustang style intake and nice intake cover we have from CPC.  Front bumper has integrated skid plate and led lights.  It looks pretty menacing coming at you!

rapshots4 rapshots1

Posted in Uncategorized | Leave a comment

Raptrac in Revelstoke

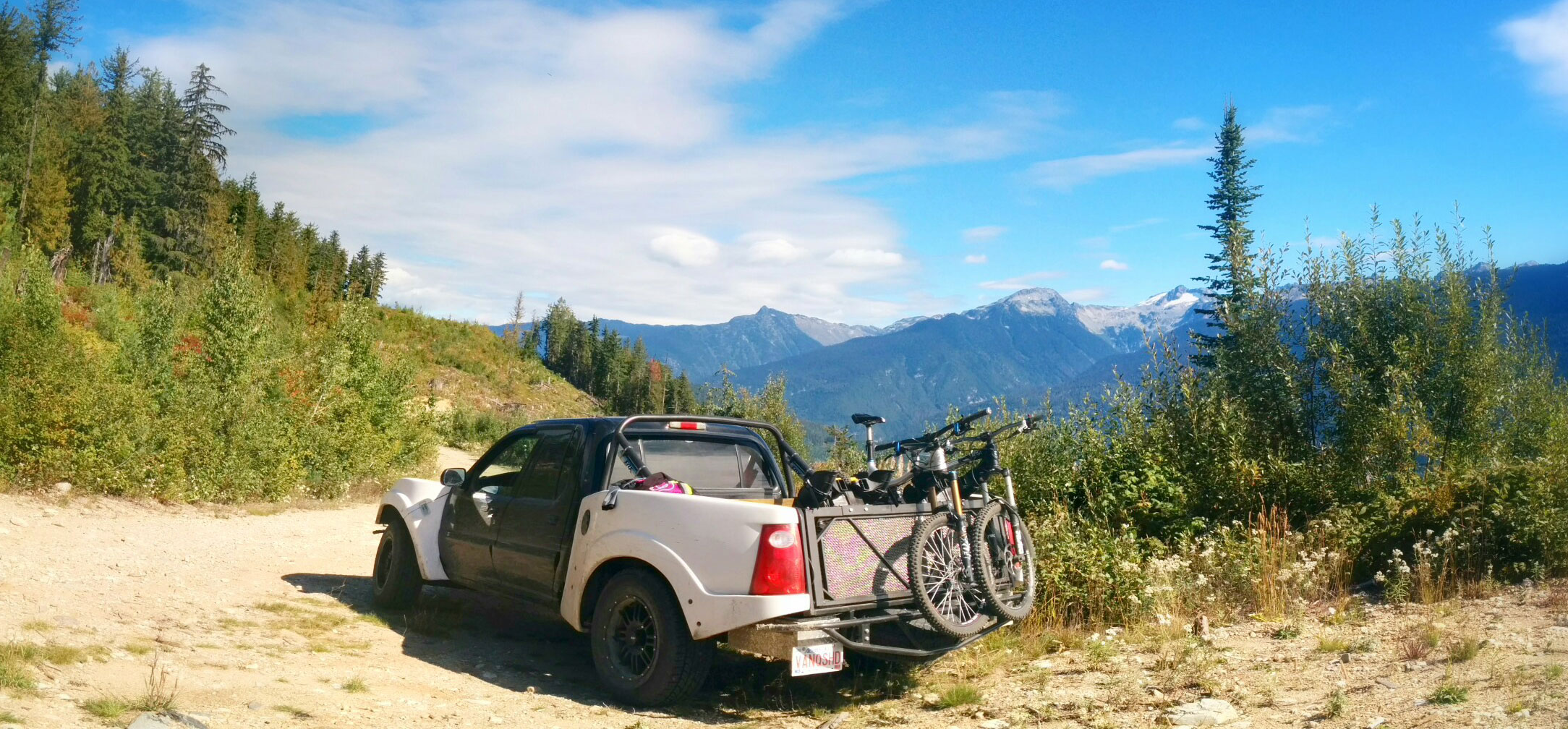

Took the truck on a great weekend trip to Revy and shuttled up some logging roads for mountain biking.  Here’s a shot high up on Frisby Ridge.  Awesome handling, fast and smooth on the rough roads.  Cruises nice on the highway too!

raptrac-revy

Posted in Uncategorized | Leave a comment

Raptrac runs!

It’s been a while since we have done an update, guess we have been too busy building.  The truck has been up and running for a few weeks now and is working great.  Here’s a quick video in our parking lot.

Posted in Uncategorized | Leave a comment

Raptrac tailgate

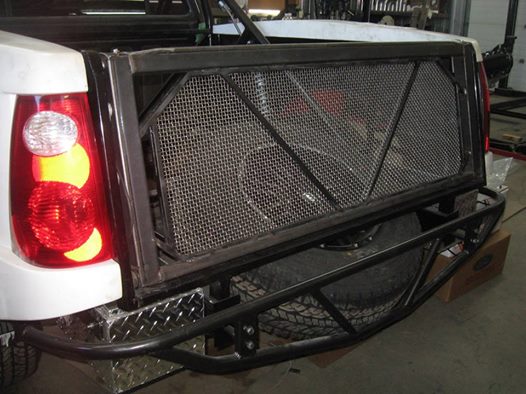

Welded up the tailgate for Raptrac with stainless mesh so you can see the spare tire and suspension

10253797_718498661506138_2925723876875070660_n

Posted in Uncategorized | Leave a comment

Gauge panel

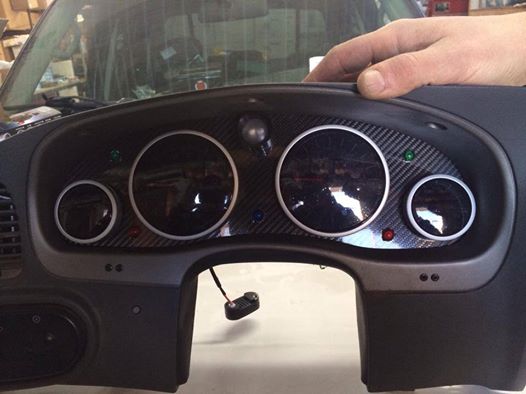

Whipped up a custom gauge cluster in a nice piece of real carbon fiber to match our console.

1796504_693029894053015_558328806_n



Posted in Uncategorized | Leave a comment

Engine going together

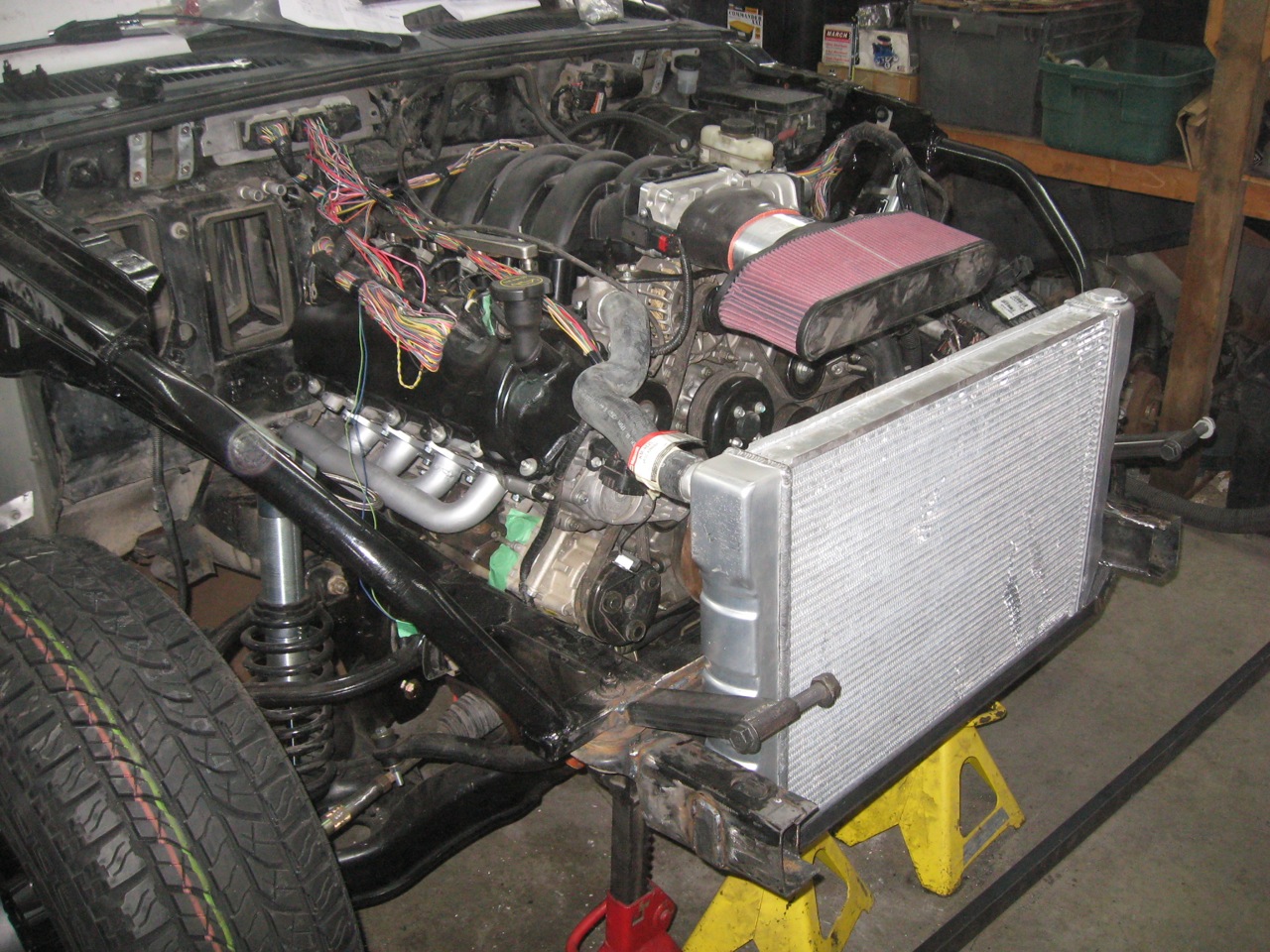

A few more parts coming together, radiator is mounted and our ram air intake mocked up. Mustang electronic gas pedal is in place and hydraulic clutch hooked up. You can see the passengers side custom built header as well.raptrac rad
Posted in Project RapTrac | Leave a comment

Lots of wiring to do!

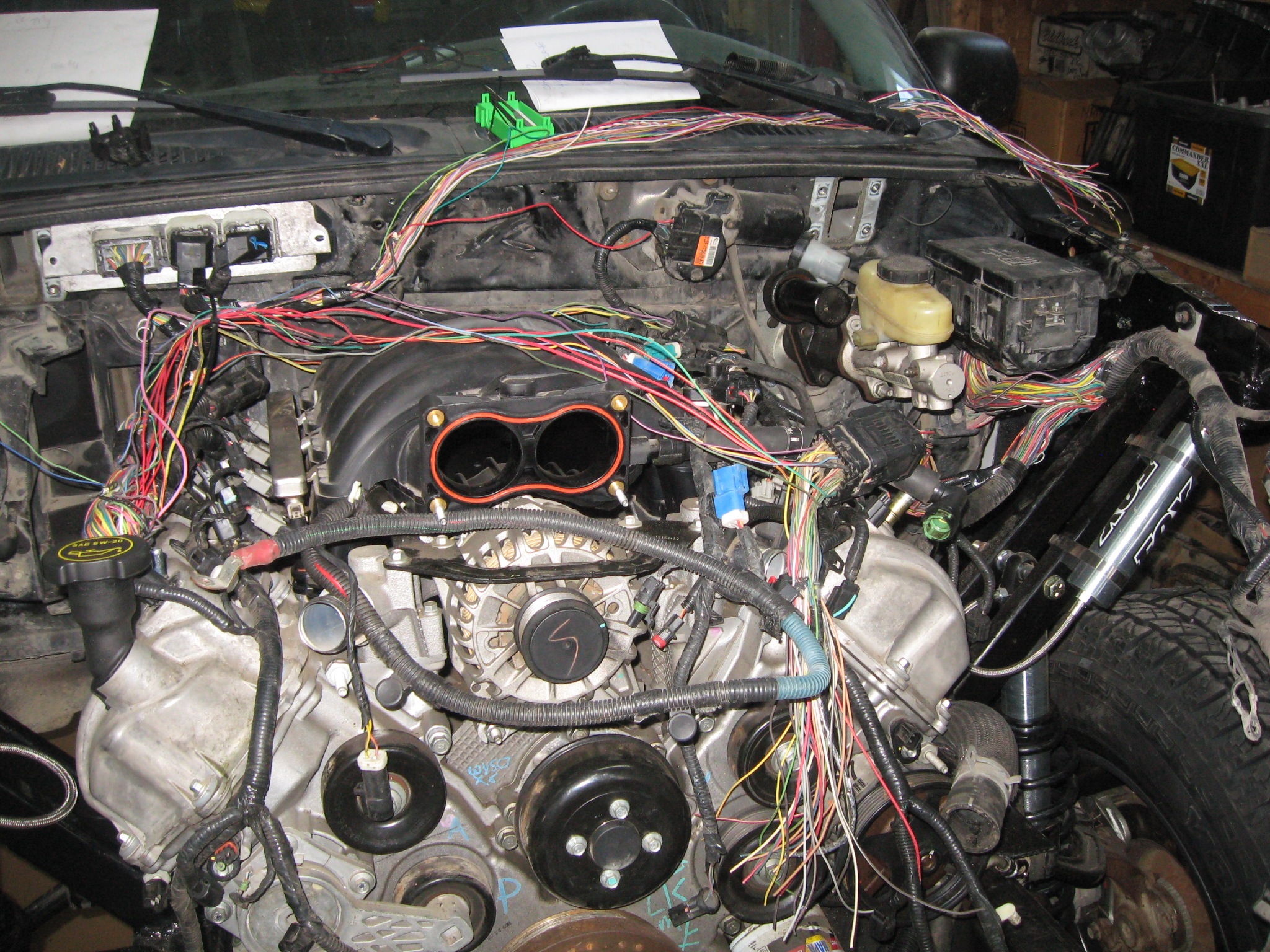

And now we are into the wiring. Integrating the Mustang computer and wiring harness with the Sport Trac.

raptrac wiring1

Posted in Uncategorized | Leave a comment

Rear bumper

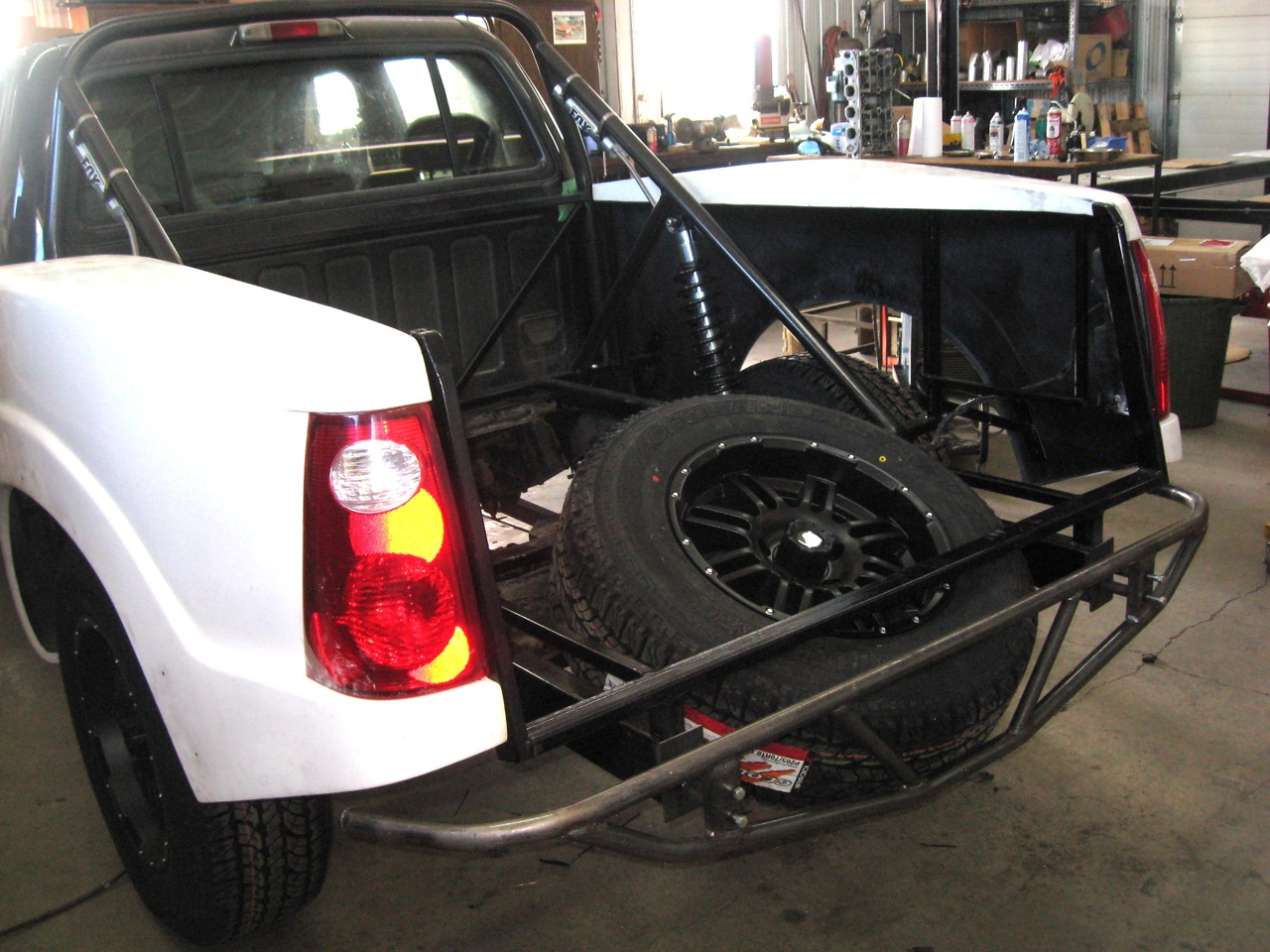

Rear bumper built with the spare tire holder for a cool baja look. Still have to build the tailgate that will be mesh to show off the tire

rap bumper

Posted in Uncategorized | Leave a comment

Engine is in

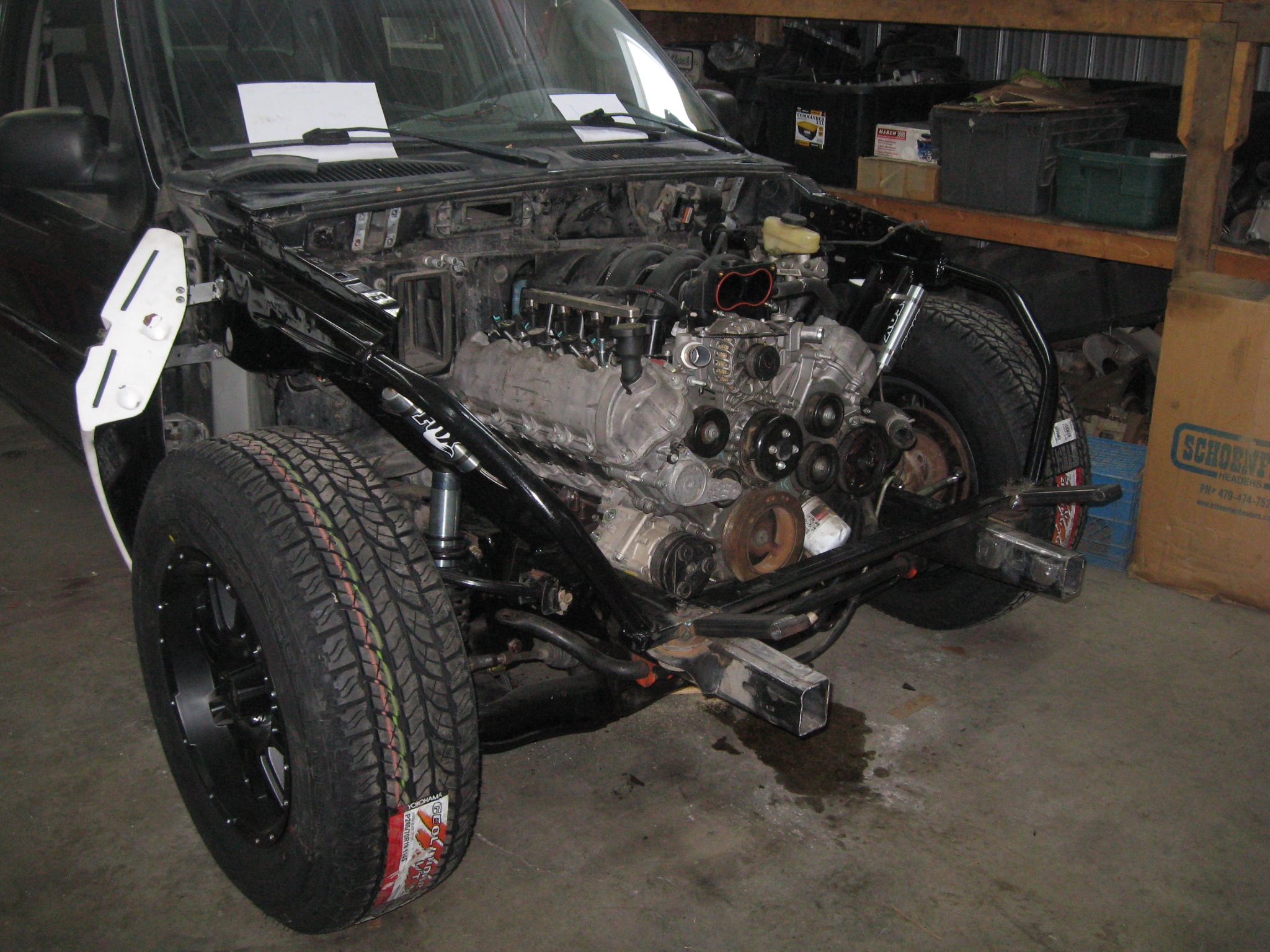

It’s been a while since we have updated the Raptrac blog and we have found some time to work on the project.  Engine is in with custom mounts built, one Mustang header fit quite nice the other will need some cutting and welding

2005 Mustang 4.6 3V installed

2005 Mustang 4.6 3V installed







Posted in Uncategorized | Leave a comment

Raptrac on it’s wheels

Bolted the wheels and tires on and set the Raptrac on the ground.  Rough setup on the ride height for now.

Raptrac sits on 265/70/18 Geolanders and American Racing AR901 wheels.

Raptrac sits on 265/70/18 Geolanders and American Racing AR901 wheels.
